Bayesian Magnetic Inversion: TMI Inversion Workflow

This tutorial demonstrates Bayesian inversion of Total Magnetic Intensity (TMI) data using the GemPy-Probability framework. This example parallels sphx_glr_02_probabilistic_modeling_04_gravity_inversion.py but applies the methodology to magnetic data.

What’s Different from Gravity?

While the Bayesian framework remains the same (see the gravity tutorial for theoretical details), magnetic inversions differ in:

1. Forward physics: We model magnetic susceptibility contrasts instead of density contrasts

2. Earth’s field dependence: Magnetic responses depend on inclination, declination, and field intensity at the site

3. Induced magnetization: We assume rocks are magnetized by Earth’s current magnetic field (no remanence)

Key Parameters

Instead of density (g/cm�), we invert for:

• Susceptibility (SI units): Dimensionless quantity ranging from ~0.001 (sediments) to ~0.1 (mafic rocks)

• Dips: Layer orientations (same as gravity example)

Data: Total Magnetic Intensity (TMI)

TMI measures the magnitude of the magnetic field vector. Units are nanoTesla (nT). Typical anomalies range from tens to thousands of nT depending on source depth and susceptibility contrast.

For comprehensive theory on Bayesian inference, MCMC, and hierarchical modeling, please refer to sphx_glr_02_probabilistic_modeling_04_gravity_inversion.py.

import os
import sys

Import Libraries

import dotenv

dotenv.load_dotenv()

from gempy_probability.modules.plot.plot_posterior import default_red, default_blue
from mineye.GeoModel.model_one.visualization import gempy_viz, plot_many_observed_vs_forward, generate_gravity_uncertainty_plots

from mineye.GeoModel.plotting.probabilistic_analysis import plot_geophysics_comparison

import numpy as np
import matplotlib.pyplot as plt
import multiprocessing as mp

import gempy as gp
import gempy_probability as gpp
import gempy_viewer as gpv

import torch
import pyro
import pyro.distributions as dist

import arviz as az
from gempy_probability.core.samplers_data import NUTSConfig

# Set random seeds for reproducibility
seed = 4003
pyro.set_rng_seed(seed)
torch.manual_seed(seed)
np.random.seed(1234)

Import helper functions

from mineye.config import paths
from mineye.GeoModel.geophysics import align_forward_to_observed
from mineye.GeoModel.model_one.model_setup import setup_geomodel
from mineye.GeoModel.model_one.probabilistic_model import normalize, set_magnetic_priors
from mineye.GeoModel.model_one.probabilistic_model_likelihoods import generate_multimagnetic_likelihood_hierarchical_per_station
from mineye.GeoModel.model_one.visualization import probability_fields_for
import geopandas as gpd

Define Model Extent and Resolution

min_x = -707521
max_x = -675558
min_y = 4526832
max_y = 4551949
max_z = 505
model_depth = -500
extent = [min_x, max_x, min_y, max_y, model_depth, max_z]

# Model resolution: use octree with refinement level 5
resolution = None
refinement = 5

Get Data Paths

mod_or_path = paths.get_orientations_path()
mod_pts_path = paths.get_points_path()
geophysical_dir = paths.get_geophysical_dir()

print(f"Orientations: {mod_or_path}")
print(f"Points: {mod_pts_path}")
print(f"Geophysical data: {geophysical_dir}")

Orientations: /home/leguark/PycharmProjects/Mineye-Terranigma/examples/Data/Model_Input_Data/Simple-Models/orientations_mod.csv
Points: /home/leguark/PycharmProjects/Mineye-Terranigma/examples/Data/Model_Input_Data/Simple-Models/points_mod.csv
Geophysical data: /home/leguark/PycharmProjects/Mineye-Terranigma/examples/Data/General_Input_Data/Geophysical_Cleaned_Data

Create Initial GemPy Model

simple_geo_model = gp.create_geomodel(
    project_name='magnetics_inversion',
    extent=extent,
    refinement=refinement,
    resolution=resolution,
    importer_helper=gp.data.ImporterHelper(
        path_to_orientations=mod_or_path,
        path_to_surface_points=mod_pts_path,
    )
)

gp.map_stack_to_surfaces(
    gempy_model=simple_geo_model,
    mapping_object={
            "Tournaisian_Plutonites": ["Tournaisian Plutonites"],
    }
)

Structural Groups:	StructuralGroup: Name: Tournaisian_Plutonites Structural Relation: StackRelationType.ERODE Elements: StructuralElement: Name: Tournaisian Plutonites
Fault Relations:	Tournaisia... Tournaisian_Plutonites
	True False

Step 1: Load Magnetic Observations

Total Magnetic Intensity (TMI) Data

TMI measures variations in the magnitude of Earth’s magnetic field caused by subsurface magnetic susceptibility contrasts. Magnetic rocks (e.g., plutons with magnetite) create positive anomalies; non-magnetic rocks (e.g., sediments) create negative anomalies or lows.

Units: nanoTesla (nT), where 1 nT = 10⁻⁹ Tesla. Earth’s field is ~47,000 nT at this location; anomalies from geology are typically 10-1000 nT.

def read_magnetics(geophysical_dir):
    """Read magnetic data from geophysical directory."""
    magnetic_data = gpd.read_file(os.path.join(geophysical_dir, 'cleaned_magnetic_data.geojson'))
    # Sample 20 points for this example
    sampled_magnetic = magnetic_data.sample(n=20, random_state=42)
    observed_magnetics = sampled_magnetic['MAG'].values  # in nT
    return sampled_magnetic, observed_magnetics


magnetic_data, observed_magnetics_nt = read_magnetics(geophysical_dir)
print(f"\nMagnetic observations:")
print(f"  Number of measurements: {len(observed_magnetics_nt)}")
print(f"  Range: {observed_magnetics_nt.min():.1f} to {observed_magnetics_nt.max():.1f} nT")
print(f"  Mean: {observed_magnetics_nt.mean():.1f} nT")

Magnetic observations:
  Number of measurements: 20
  Range: 43216.0 to 43350.1 nT
  Mean: 43285.5 nT

Step 2: Setup Geomodel with Magnetic Configuration

Magnetic Forward Modeling

Magnetic modeling requires:

1. Centered grid: Measurement locations in 3D space

2. Magnetic gradient tensor: Pre-computed kernel for TMI calculation

3. IGRF parameters: International Geomagnetic Reference Field for location (inclination, declination, intensity)

4. Susceptibilities: Initial values for each rock unit

def setup_magnetic_geomodel(magnetic_data, simple_geo_model):
    """Setup geomodel with magnetic measurement locations."""
    xy_ravel = np.column_stack([
            np.array(magnetic_data.geometry.x.values),
            np.array(magnetic_data.geometry.y.values),
            np.full(len(magnetic_data), 500)  # Surface elevation
    ])

    # Setup centered grid for magnetics
    gp.set_centered_grid(
        grid=simple_geo_model.grid,
        centers=xy_ravel,
        resolution=np.array([10, 10, 15]),
        radius=np.array([2000, 5000, 2000])
    )

    # Calculate magnetic gradient tensor
    from gempy_engine.modules.geophysics.magnetic_gradient import calculate_magnetic_gradient_tensor
    from gempy_engine.core.data.geophysics_input import MagneticsInput

    gradient_tensor_dict = calculate_magnetic_gradient_tensor(
        centered_grid=simple_geo_model.grid.centered_grid,
        igrf_params={
                "inclination": 60.79,  # Huelva, Spain (2025)
                "declination": 1.26,
                "intensity"  : 47258.4  # Earth's field strength in nT
        },
        compute_tmi=True,
        units_nT=True,
    )

    # Configure geophysics input
    simple_geo_model.geophysics_input = gp.data.GeophysicsInput(
        magnetics_input=MagneticsInput(
            mag_kernel=gradient_tensor_dict['tmi_kernel'],
            susceptibilities=np.array([0.05, 0.001]),  # Initial: plutonites, host
            igrf_params={
                    "inclination": gradient_tensor_dict['inclination'],
                    "declination": gradient_tensor_dict['declination'],
                    "intensity"  : gradient_tensor_dict['intensity']
            }
        )
    )

    simple_geo_model.interpolation_options.mesh_extraction = False

    gp.set_active_grid(
        grid=simple_geo_model.grid,
        grid_type=[simple_geo_model.grid.GridTypes.CENTERED],
        reset=True
    )

    return simple_geo_model, xy_ravel

Compute and Visualize Initial Model

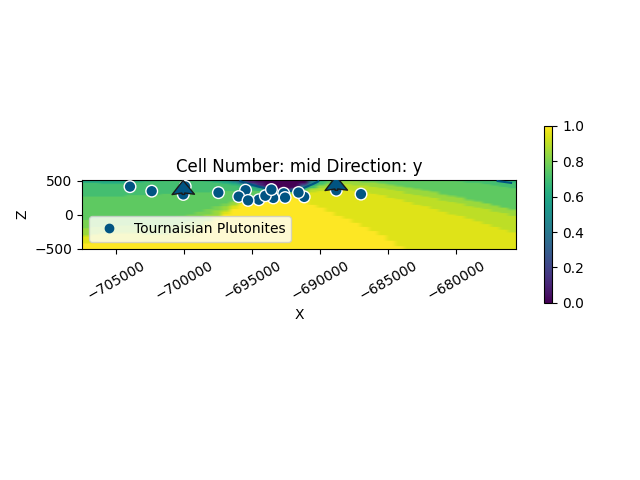

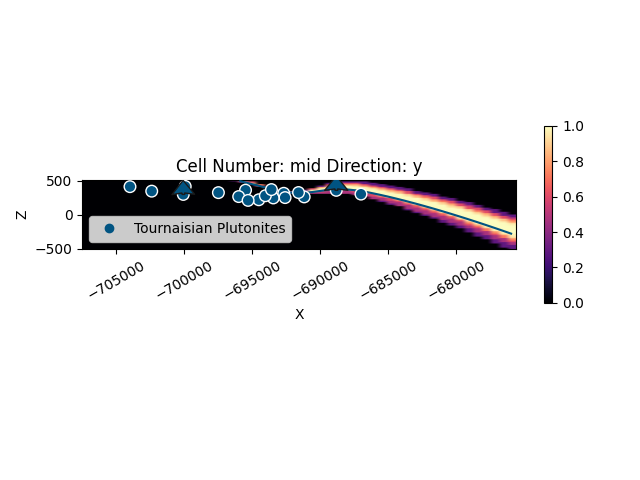

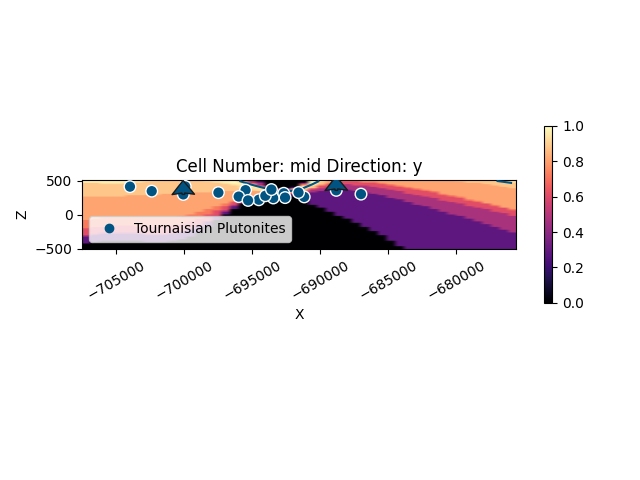

gp.compute_model(simple_geo_model)

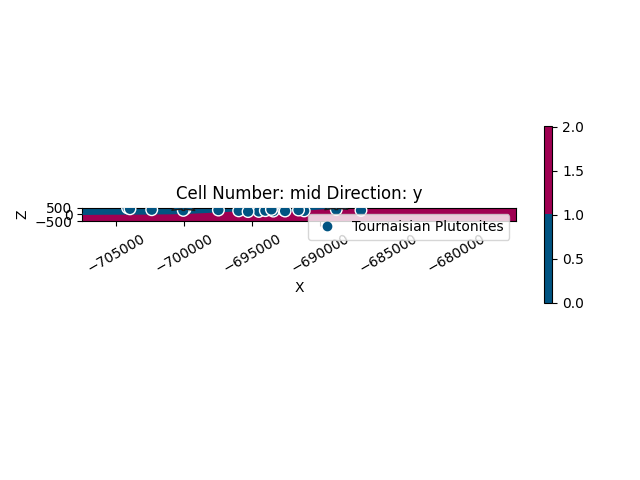

gpv.plot_2d(simple_geo_model)

Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces

<gempy_viewer.modules.plot_2d.visualization_2d.Plot2D object at 0x7fed00e1e300>

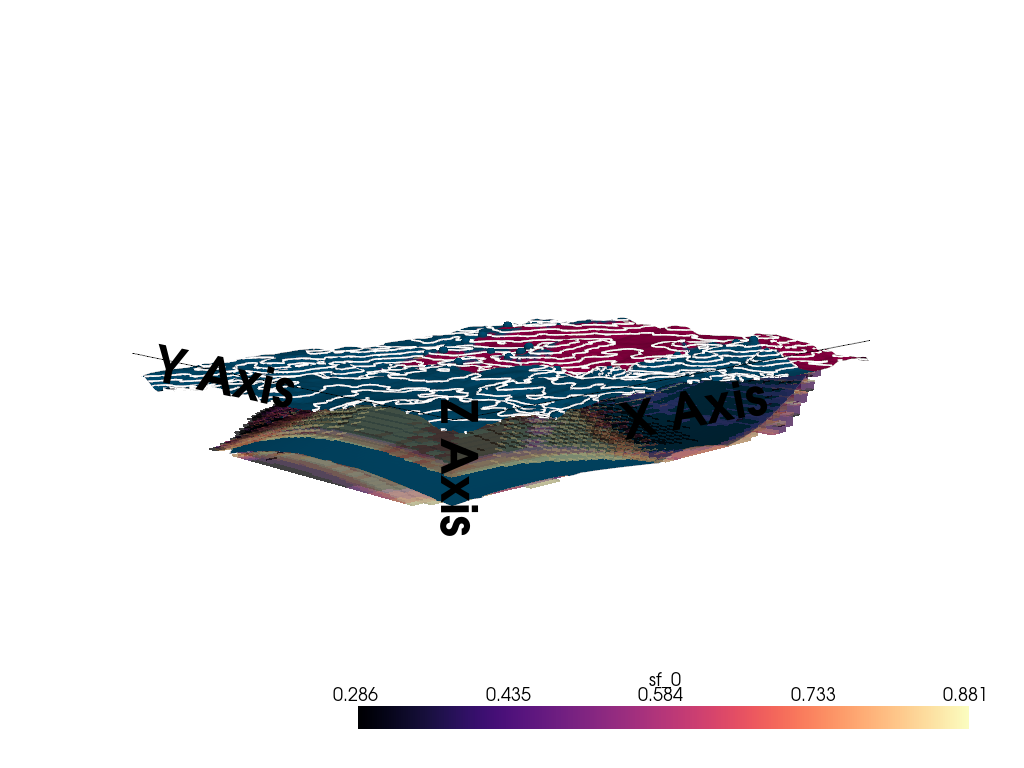

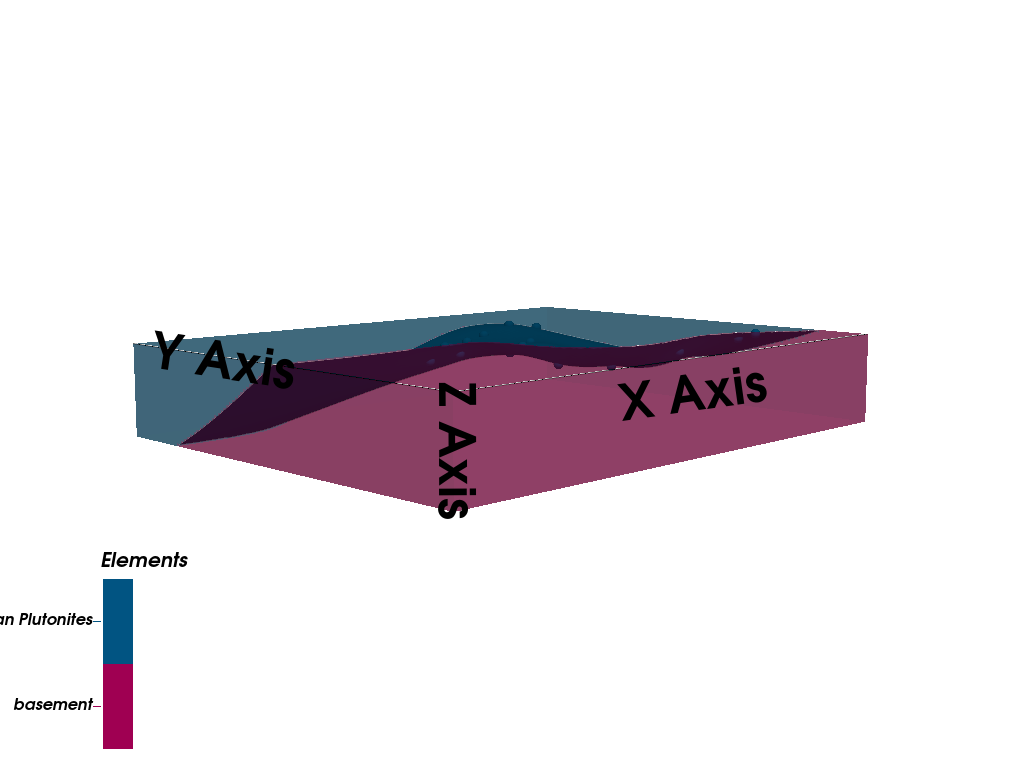

gpv.plot_3d(
    model=simple_geo_model,
    ve=5,
    image=False,
    kwargs_pyvista_bounds={
            'show_xlabels': False,
            'show_ylabels': False,
            'show_zlabels': False,
    }
)

/home/leguark/PycharmProjects/gempy_viewer/gempy_viewer/modules/plot_3d/drawer_surfaces_3d.py:38: PyVistaDeprecationWarning:
../../../gempy_viewer/gempy_viewer/modules/plot_3d/drawer_surfaces_3d.py:38: Argument 'color' must be passed as a keyword argument to function 'BasePlotter.add_mesh'.
From version 0.50, passing this as a positional argument will result in a TypeError.
  gempy_vista.surface_actors[element.name] = gempy_vista.p.add_mesh(

<gempy_viewer.modules.plot_3d.vista.GemPyToVista object at 0x7fed7c6ada70>

geo_model, xy_ravel = setup_magnetic_geomodel(magnetic_data, simple_geo_model)
geo_model.interpolation_options.sigmoid_slope = 100

print(f"\n Geomodel configured with {len(xy_ravel)} magnetic measurement locations")

Active grids: GridTypes.OCTREE|CENTERED|NONE
Active grids: GridTypes.CENTERED|NONE

 Geomodel configured with 20 magnetic measurement locations

Step 3: Compute Baseline Forward Model

Compute forward magnetics with initial susceptibility values to assess baseline fit before inversion.

def baseline_magnetics(geo_model):
    """Compute baseline forward magnetics model."""
    sol = gp.compute_model(geo_model)
    return sol.magnetics.detach().cpu().numpy() if hasattr(sol.magnetics, 'detach') else sol.magnetics


baseline_fw_magnetics_np = baseline_magnetics(geo_model)
print(f"\nBaseline forward magnetics:")
print(f"  Range: {baseline_fw_magnetics_np.min():.1f} to {baseline_fw_magnetics_np.max():.1f} nT")
print(f"  Mean: {baseline_fw_magnetics_np.mean():.1f} nT")

Setting Backend To: AvailableBackends.PYTORCH

Baseline forward magnetics:
  Range: -150.2 to 56.3 nT
  Mean: -25.2 nT

Step 4: Normalize Forward Model to Observations

Similar to gravity, we align the forward model to observations to handle regional trends and reference frame differences.

norm_params = normalize(
    baseline_fw_gravity_np=baseline_fw_magnetics_np,
    observed_gravity=observed_magnetics_nt,
    method="align_to_reference",
    extrapolation_buffer=0.3
)
print(f"\nNormalization parameters:")
print(f"  Method: {norm_params['method']}")

Computing align_to_reference alignment parameters...
  Alignment params: {'method': 'align_to_reference', 'reference_mean': 43285.51, 'reference_std': 32.132411985407714, 'baseline_forward_mean': -25.24697207126045, 'baseline_forward_std': 54.74728579871348}

Normalization parameters:
  Method: align_to_reference

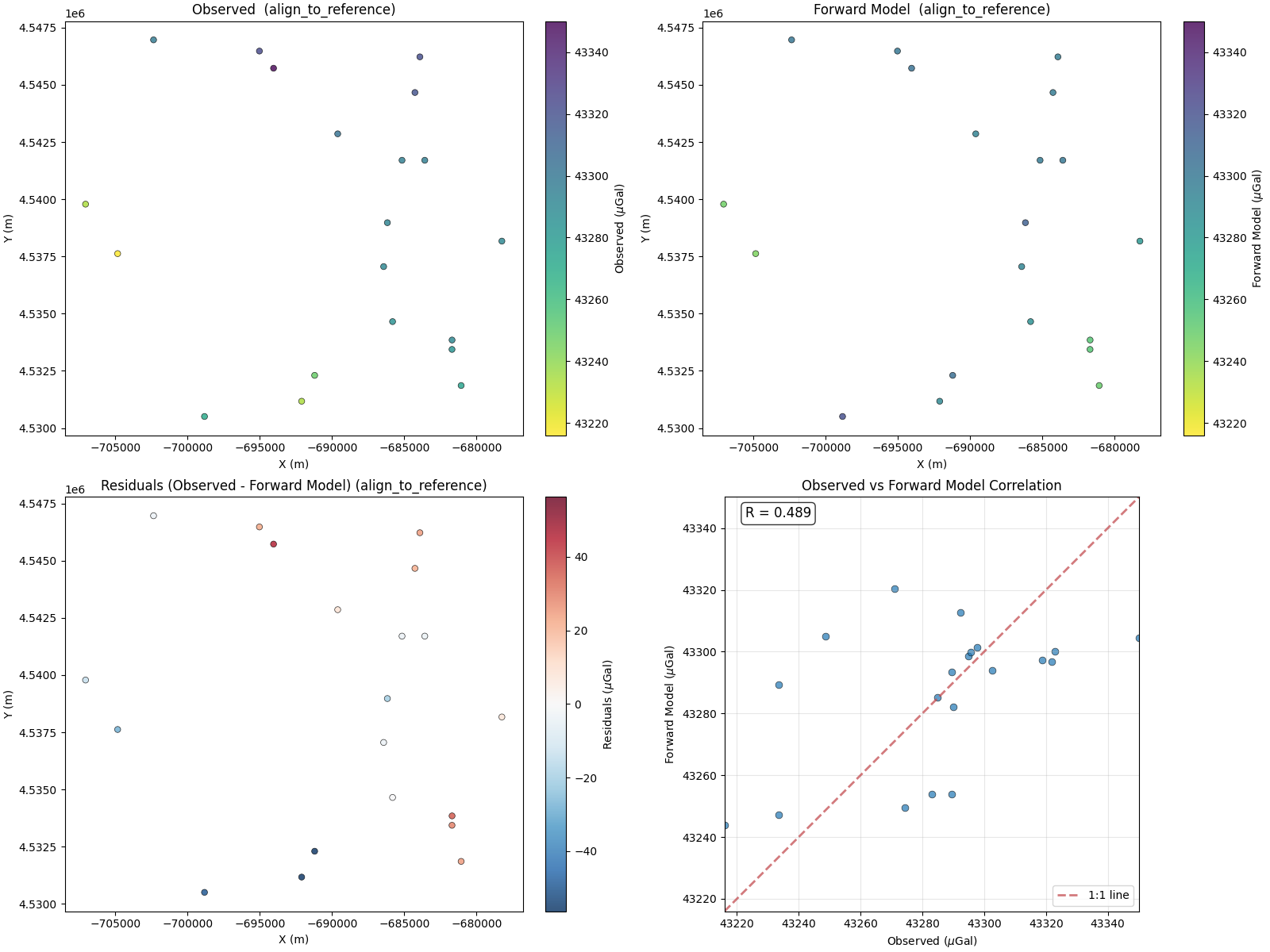

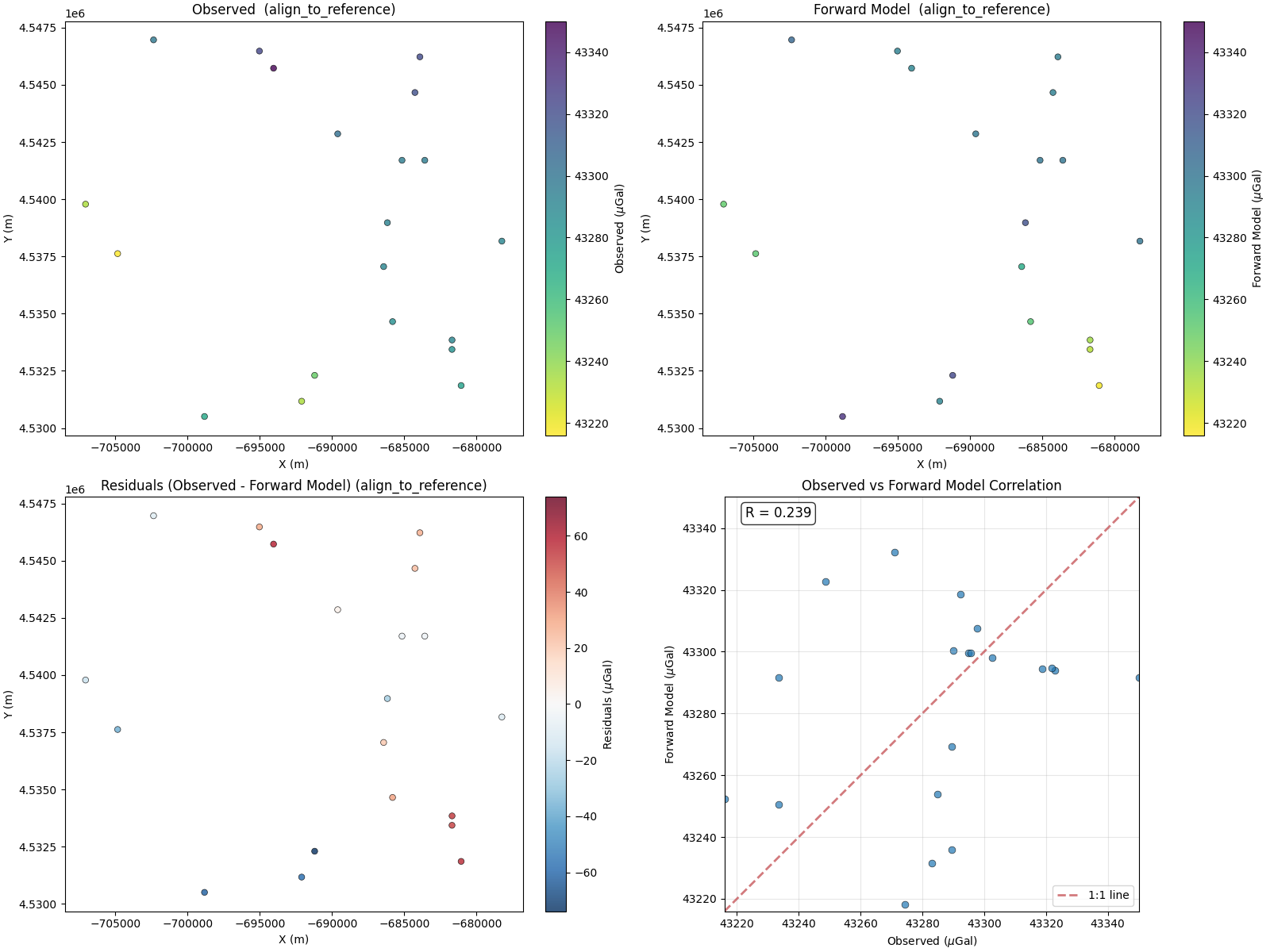

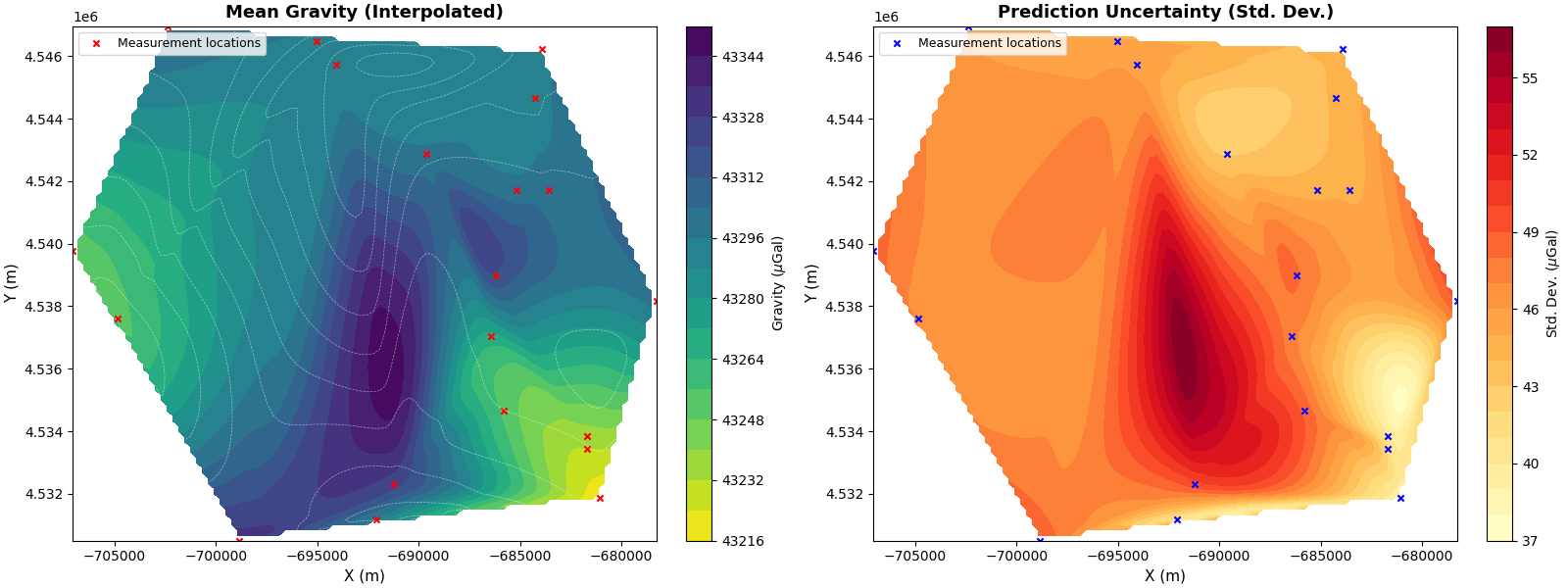

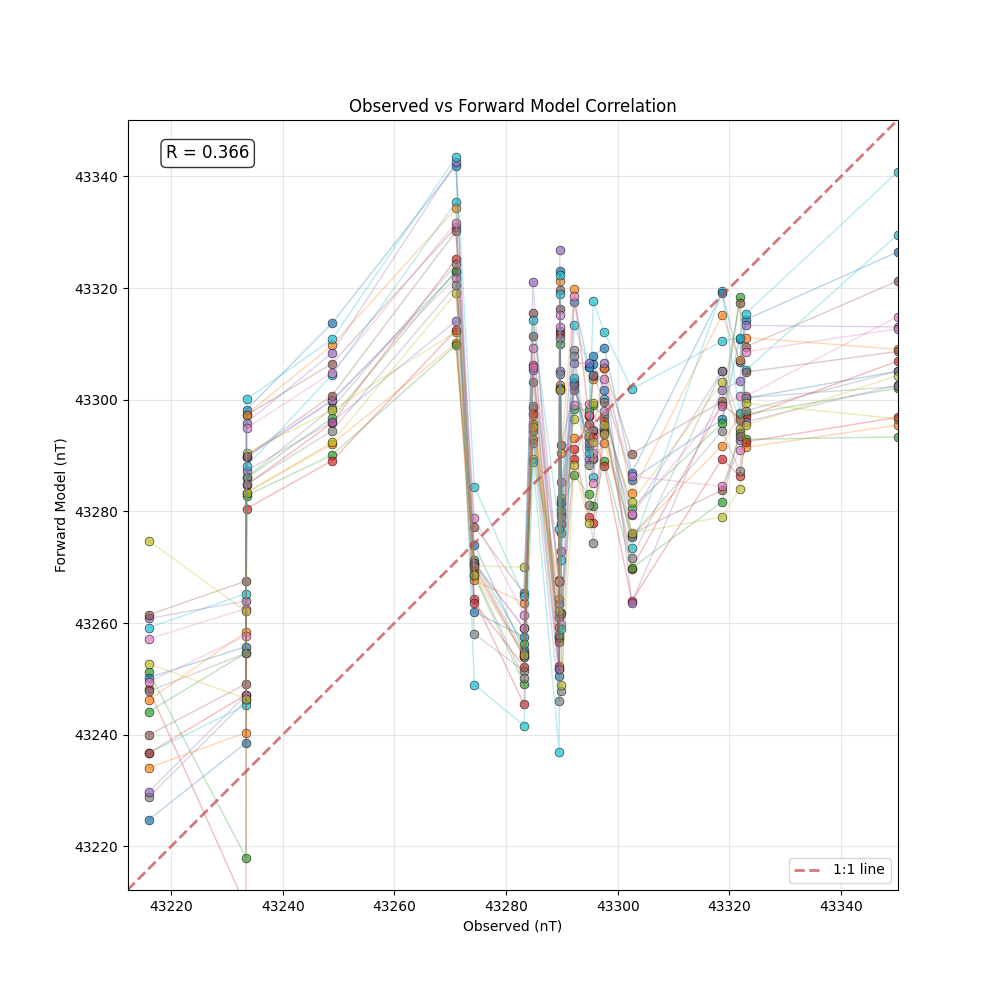

Visualize baseline fit

plot_geophysics_comparison(
    forward_norm=align_forward_to_observed(baseline_fw_magnetics_np, norm_params),
    normalization_method="align_to_reference",
    observed_ugal=observed_magnetics_nt,
    xy_ravel=xy_ravel
)

Step 5: Define Prior Distributions

Priors for Magnetic Inversion

We define priors on:

1. Dips: Same as gravity example (N(10�, 10�))

2. Susceptibilities: - Plutonites: 0.05 � 0.01 SI (typical for granitic rocks with magnetite) - Host rock: 0.001 � 0.01 SI (low susceptibility sediments)

n_orientations = geo_model.orientations_copy.xyz.shape[0]
prior_key_dips = r'dips'
prior_key_susceptibility = r'susceptibility'

model_priors = {
        prior_key_dips          : dist.Normal(
            loc=(torch.ones(n_orientations) * 10.0),
            scale=torch.tensor(10.0, dtype=torch.float64),
            validate_args=True
        ).to_event(1),
        prior_key_susceptibility: dist.Normal(
            loc=(torch.tensor([
                    0.05,  # plutonites
                    0.001  # host rock
            ])),
            scale=torch.tensor(0.01),
        ).to_event(1)
}

print(f"\nPrior on susceptibilities:")
print(f"  Plutonites: 0.05 � 0.01 SI")
print(f"  Host rock: 0.001 � 0.01 SI")

Prior on susceptibilities:
  Plutonites: 0.05 � 0.01 SI
  Host rock: 0.001 � 0.01 SI

Step 6: Define Deterministic Functions

post_forward_dets = {
        "magnetic_response_raw": lambda samples, gm, sol: sol.magnetics,
        r'$\mu_{magnetics}$'    : lambda samples, gm, sol: align_forward_to_observed(
            sol.magnetics, norm_params
        ),
        "mean_magnetics"       : lambda samples, gm, sol: torch.mean(
            align_forward_to_observed(sol.magnetics, norm_params)
        ),
        "max_magnetics"        : lambda samples, gm, sol: torch.max(
            align_forward_to_observed(sol.magnetics, norm_params), 0
        ),
}

Step 7: Define Likelihood Function

We use a hierarchical likelihood with per-station noise, analogous to the gravity example but with typical magnetic noise levels (~50 nT).

likelihood_fn = generate_multimagnetic_likelihood_hierarchical_per_station(
    norm_params=norm_params
)

print("Likelihood function created (hierarchical per-station)")
print(f"  Global mean noise prior: ~50.0 nT")

Likelihood function created (hierarchical per-station)
  Global mean noise prior: ~50.0 nT

Step 8: Set Interpolation Input Function

This function updates GemPy model parameters from Pyro samples.

Step 9: Create Probabilistic Model

prob_model: gpp.GemPyPyroModel = gpp.make_gempy_pyro_model(
    priors=model_priors,
    set_interp_input_fn=set_magnetic_priors,
    likelihood_fn=likelihood_fn,
    obs_name="Magnetic Measurement"
)

print("Probabilistic model created")
print("  Model components:")
print("    - Priors: dips (orientations), susceptibilities")
print("    - Forward model: GemPy geological interpolation + TMI")
print("    - Likelihood: Hierarchical per-station noise")

Setting Backend To: AvailableBackends.PYTORCH
Probabilistic model created
  Model components:
    - Priors: dips (orientations), susceptibilities
    - Forward model: GemPy geological interpolation + TMI
    - Likelihood: Hierarchical per-station noise

Step 11: Prior Predictive Checks

Why Prior Predictive Checks?

Before running inference, we sample from the prior to answer critical questions:

1. Range check: Do prior predictions cover the observed values? If not, the prior may be too restrictive or the model inadequate.

2. Model adequacy: Can any parameter combination explain the data? If prior predictions are far from observations, we may need:

   • More model complexity (additional parameters)

   • Different physics (e.g., include magnetics, seismic)

   • Revised priors (incorrect geological assumptions)

3. Prior sensitivity: How much do predictions vary under the prior? High variability indicates the prior is uninformative; low variability suggests the prior is too restrictive.

Expected behavior:

In this test case, we simulate 20 observations per iteration. Some forward models explain certain stations well but fail at others, suggesting:

• The model may be oversimplified

• Some stations could be outliers

• Additional data types might not help without increasing model complexity

Prior predictive sampling generates data as if we hadn’t seen the observations yet.

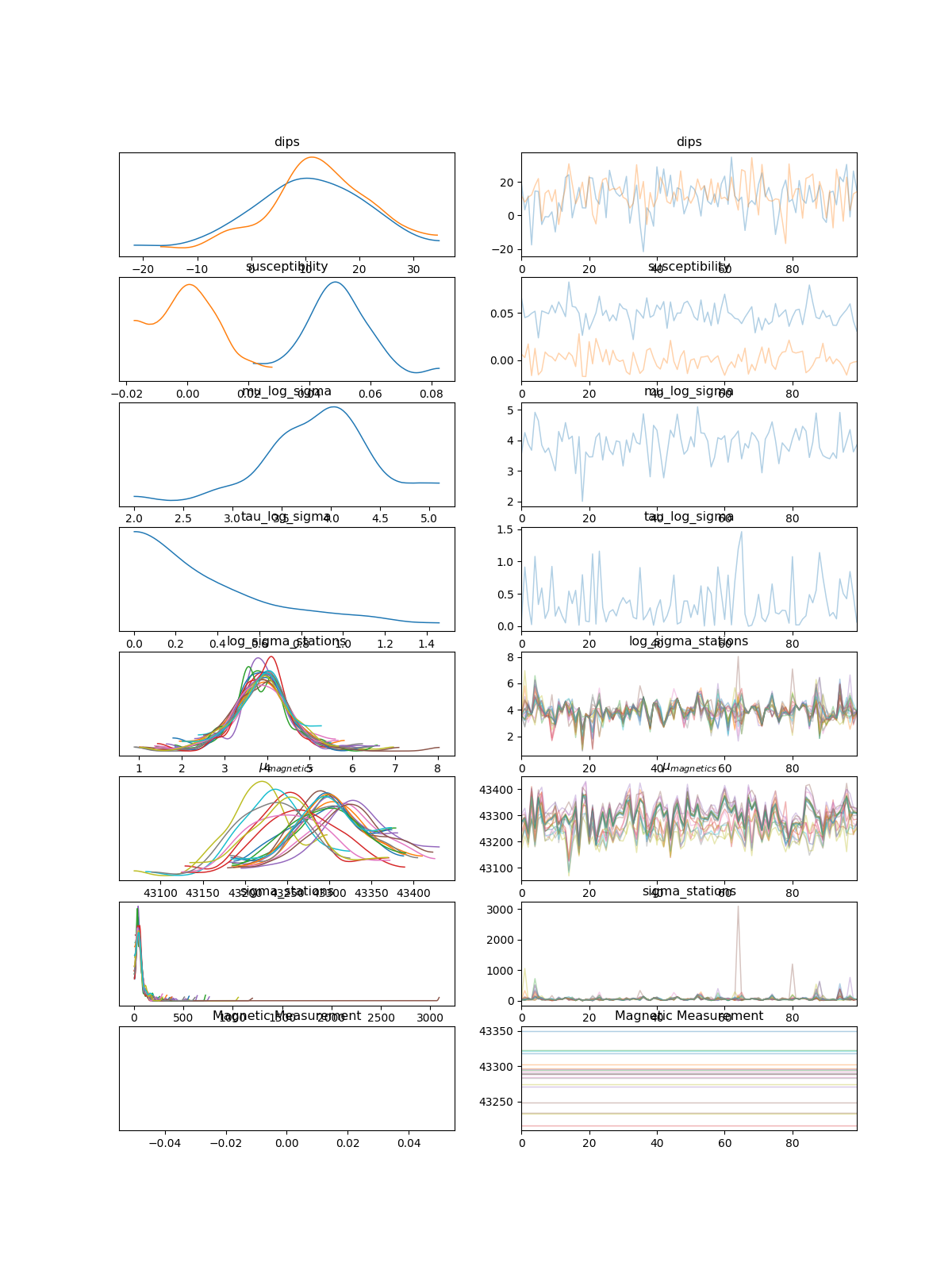

print("\nRunning prior predictive sampling (100 samples)...")
prior_inference_data: az.InferenceData = gpp.run_predictive(
    prob_model=prob_model,
    geo_model=geo_model,
    y_obs_list=torch.tensor(observed_magnetics_nt),
    n_samples=100,
    plot_trace=True
)

print("✓ Prior predictive sampling complete")

Running prior predictive sampling (100 samples)...
/home/leguark/.venv/2025/lib/python3.13/site-packages/arviz/stats/density_utils.py:488: UserWarning: Your data appears to have a single value or no finite values
  warnings.warn("Your data appears to have a single value or no finite values")
✓ Prior predictive sampling complete

Visualize Prior Geological Models

Understanding gempy_viz

This function creates a 2D cross-section visualization showing:

1. The geological model: Interpolated lithological boundaries

2. Prior uncertainty via KDE (Kernel Density Estimation):

   • Background colored contours show probability density of boundary locations

   • Darker/more saturated colors = higher probability

   • Shows where the geological boundary is likely to be given our prior beliefs

3. Representative realizations: Individual model samples overlaid as contours

Why visualize the prior?

• Verify that prior predictions span a geologically reasonable range

• Check if the model can produce diverse enough structures

• Identify if priors are too restrictive (narrow KDE) or too vague (very wide KDE)

KDE interpretation:

• Narrow, focused density: Strong prior belief about structure location

• Wide, diffuse density: High uncertainty in structure location

• Multiple modes: Prior suggests multiple possible configurations

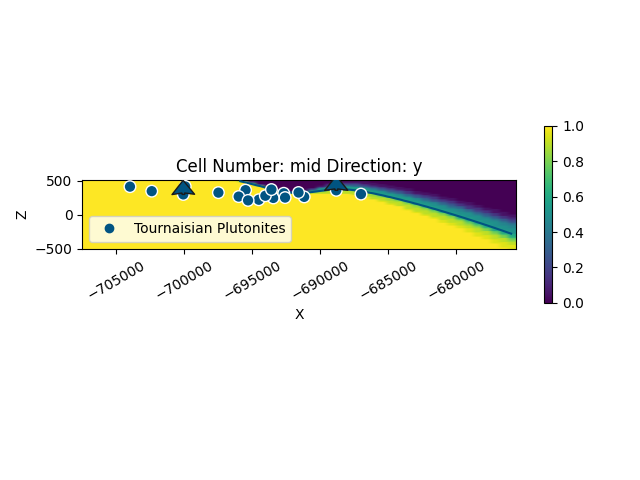

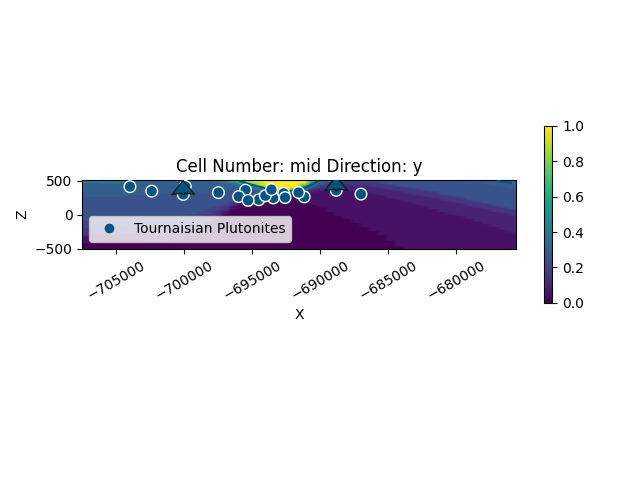

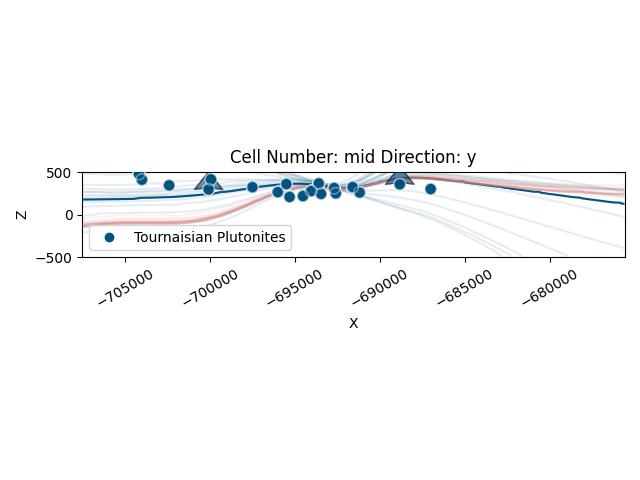

gempy_viz(
    geo_model=geo_model,
    prior_inference_data=prior_inference_data,
    n_samples=20
)

Active grids: GridTypes.OCTREE|NONE
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
/home/leguark/PycharmProjects/gempy_viewer/gempy_viewer/modules/plot_2d/drawer_contours_2d.py:38: UserWarning: The following kwargs were not used by contour: 'linewidth', 'contour_colors'
  contour_set = ax.contour(
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH

<gempy_viewer.modules.plot_2d.visualization_2d.Plot2D object at 0x7fecf8274c80>

Compare Multiple Prior Predictions to Observations

Understanding plot_many_observed_vs_forward

This diagnostic plot shows how well different prior samples fit the data. It helps answer: “Can ANY model from our prior explain the observations?”

Plot Structure:

• X-axis: Observed magnetics (sorted by value for clarity)

• Y-axis: Forward-modeled magnetics from different prior samples

• Each colored line: One realization from the prior distribution

• Red dashed line: Perfect 1:1 agreement

plot_many_observed_vs_forward(
    forward_norm=(align_forward_to_observed(baseline_fw_magnetics_np, norm_params)),
    many_forward_norm=prior_inference_data.prior[r'$\mu_{magnetics}$'].values[0, -10:],
    observed_norm=observed_magnetics_nt,
    unit_label='nT'
)

Step 10: Load Pre-computed Results

To save computation time, we load results from a previous MCMC run. The simulation was performed with the same configuration as the gravity example (200 warmup steps, 200 samples, NUTS sampler).

To run the inference yourself, set RUN_SIMULATION = True below.

RUN_SIMULATION = False

if RUN_SIMULATION:
    print("\nRunning NUTS inference...")

    magnetic_observations_tensor = torch.tensor(observed_magnetics_nt)

    # Prior predictive checks
    prior_inference_data: az.InferenceData = gpp.run_predictive(
        prob_model=prob_model,
        geo_model=geo_model,
        y_obs_list=magnetic_observations_tensor,
        n_samples=100,
        plot_trace=True
    )

    # MCMC inference
    data = gpp.run_nuts_inference(
        prob_model=prob_model,
        geo_model=geo_model,
        y_obs_list=magnetic_observations_tensor,
        config=NUTSConfig(
            step_size=0.0001,
            adapt_step_size=True,
            target_accept_prob=0.65,
            max_tree_depth=5,
            init_strategy='median',
            num_samples=200,
            warmup_steps=200,
        ),
        plot_trace=True,
        run_posterior_predictive=True
    )

    data.extend(prior_inference_data)
    print(" NUTS inference complete")

else:
    from pathlib import Path
    import inspect

    # Get the directory of the current file
    current_dir = Path(inspect.getfile(inspect.currentframe())).parent.resolve()
    data_path = current_dir / "arviz_data_magnetic_feb2026.nc"

    if not data_path.exists():
        raise FileNotFoundError(
            f"Data file not found at {data_path}. "
            f"Please run the simulation first with RUN_SIMULATION=True"
        )

    # Read the data file
    data = az.from_netcdf(str(data_path))
    print(f" Loaded inference results from {data_path}")

 Loaded inference results from /home/leguark/PycharmProjects/Mineye-Terranigma/examples/02_probabilistic_modeling/arviz_data_magnetic_feb2026.nc

Interactive: Pre-computed Results

Running full MCMC chains can be computationally expensive. For convenience, pre-computed .nc files (ArviZ InferenceData) are available for download.

To use them: 1. Download arviz_data_05.nc from the project repository. 2. Place it in the same directory as this script. 3. Set RUN_SIMULATION = False to load the results instantly.

Analysis: Parameter Posterior Statistics

posterior_dips = data.posterior['dips'].values
print(f"\nPosterior dip statistics:")
print(f"  Shape: {posterior_dips.shape}")
print(f"  Mean: {posterior_dips.mean():.2f}�")
print(f"  Std: {posterior_dips.std():.2f}�")

posterior_suscept = data.posterior['susceptibility'].values
print(f"\nPosterior susceptibility statistics:")
print(f"  Plutonites - Mean: {posterior_suscept[:, :, 0].mean():.4f} SI")
print(f"  Plutonites - Std: {posterior_suscept[:, :, 0].std():.4f} SI")
print(f"  Host rock - Mean: {posterior_suscept[:, :, 1].mean():.4f} SI")
print(f"  Host rock - Std: {posterior_suscept[:, :, 1].std():.4f} SI")

if hasattr(data, 'prior'):
    prior_dips = data.prior['dips'].values
    uncertainty_reduction = (1 - posterior_dips.std() / prior_dips.std()) * 100
    print(f"\nUncertainty reduction in dips: {uncertainty_reduction:.1f}%")

Posterior dip statistics:
  Shape: (1, 200, 2)
  Mean: 9.97�
  Std: 6.77�

Posterior susceptibility statistics:
  Plutonites - Mean: 0.0395 SI
  Plutonites - Std: 0.0075 SI
  Host rock - Mean: 0.0011 SI
  Host rock - Std: 0.0019 SI

Uncertainty reduction in dips: 32.5%

Analysis: Predictive Performance

posterior_magnetics = data.posterior_predictive['Magnetic Measurement'].values
print(f"\nPosterior predictive magnetics:")
print(f"  Mean: {posterior_magnetics.mean():.1f} nT")
print(f"  Std: {posterior_magnetics.std():.1f} nT")

residuals = posterior_magnetics.mean(axis=(0, 1)) - observed_magnetics_nt
print(f"\nResiduals (posterior mean - observed):")
print(f"  Mean: {residuals.mean():.2f} nT (bias)")
print(f"  RMS: {np.sqrt((residuals ** 2).mean()):.2f} nT (fit quality)")

Posterior predictive magnetics:
  Mean: 43285.5 nT
  Std: 32.1 nT

Residuals (posterior mean - observed):
  Mean: -0.00 nT (bias)
  RMS: 0.00 nT (fit quality)

Posterior Predictive: Model Fit Analysis

Understanding Posterior Convergence

In the plot_many_observed_vs_forward visualization, we observe that no single model can perfectly explain all observations simultaneously. This reveals an important aspect of Bayesian inference: the posterior distribution identifies models that best balance the fit across all measurement stations.

What the inference is doing:

The MCMC sampler finds parameter combinations that bring the maximum number of observations close to their measured values. Rather than perfectly fitting a subset of stations, the posterior concentrates on models that provide reasonable explanations across the entire dataset. This “compromise” solution is mathematically optimal under our likelihood model.

Geometric constraints from data:

Even with this distributed fit, the magnetic data significantly constrains the possible geological configurations. As visualized in gempy_viz, the posterior distribution shows much tighter bounds on structural geometry than the prior. The inference has successfully ruled out large regions of parameter space that are inconsistent with observations.

Implications:

• Stations that remain poorly fit may indicate localized geological complexity not captured by our current model structure

• The spread in posterior predictions quantifies irreducible uncertainty given model assumptions

• Future model refinements (additional layers, spatially-varying susceptibilities) could improve station-by-station fit while maintaining these geometric constraints

plot_many_observed_vs_forward(
    forward_norm=(align_forward_to_observed(baseline_fw_magnetics_np, norm_params)),
    many_forward_norm=data.posterior_predictive[r'$\mu_{magnetics}$'].values[0, -20:],
    observed_norm=observed_magnetics_nt,
    unit_label='nT'
)

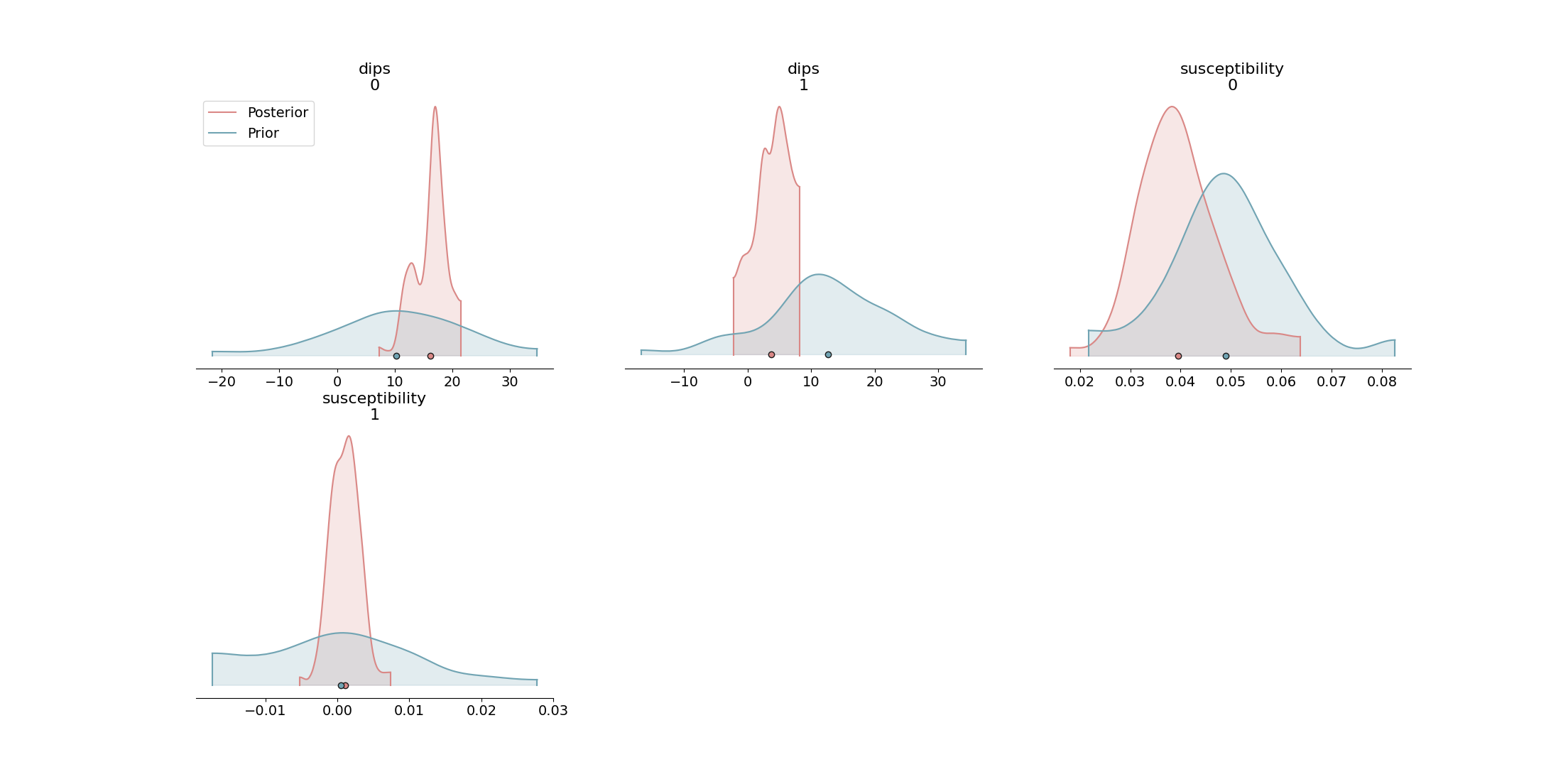

Density plots comparing prior and posterior distributions

az.plot_density(
    data=[data, data.prior],
    var_names=["dips", "susceptibility"],
    filter_vars="like",
    hdi_prob=0.9999,
    shade=.2,
    data_labels=["Posterior", "Prior"],
    colors=[default_red, default_blue],
)

array([[<Axes: title={'center': 'dips\n0'}>,
        <Axes: title={'center': 'dips\n1'}>,
        <Axes: title={'center': 'susceptibility\n0'}>],
       [<Axes: title={'center': 'susceptibility\n1'}>, <Axes: >,
        <Axes: >]], dtype=object)

Geological Model Uncertainty Visualization

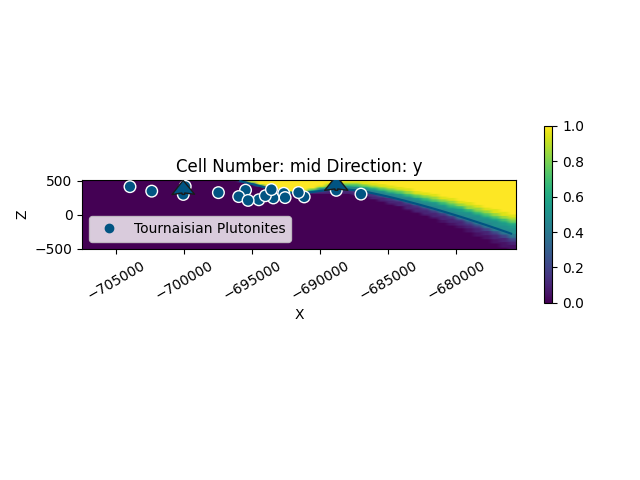

gempy_viz(
    geo_model=geo_model,
    prior_inference_data=data,
    n_samples=20
)

Active grids: GridTypes.OCTREE|NONE
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
/home/leguark/PycharmProjects/gempy_viewer/gempy_viewer/modules/plot_2d/drawer_contours_2d.py:38: UserWarning: The following kwargs were not used by contour: 'linewidth', 'contour_colors'
  contour_set = ax.contour(
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH
Setting Backend To: AvailableBackends.PYTORCH

<gempy_viewer.modules.plot_2d.visualization_2d.Plot2D object at 0x7fecf2f2cad0>

Spatial Comparison: Prior Predictions

plot_geophysics_comparison(
    forward_norm=data.prior[r'$\mu_{magnetics}$'].mean(axis=1),
    normalization_method='align_to_reference',
    observed_ugal=observed_magnetics_nt,
    xy_ravel=xy_ravel
)

Spatial Comparison: Posterior Predictions

plot_geophysics_comparison(
    forward_norm=data.posterior_predictive[r'$\mu_{magnetics}$'].mean(axis=1),
    normalization_method='align_to_reference',
    observed_ugal=observed_magnetics_nt,
    xy_ravel=xy_ravel
)

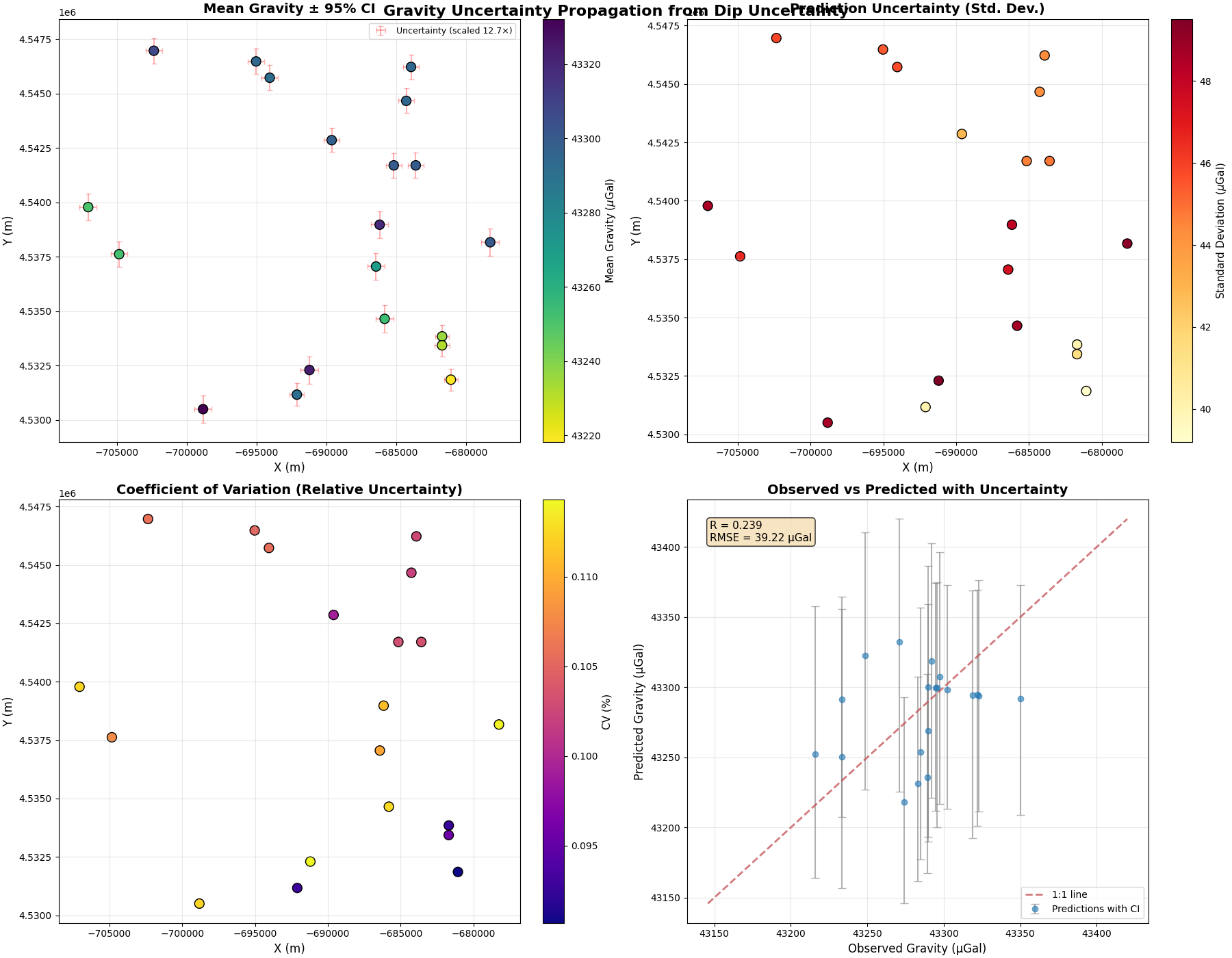

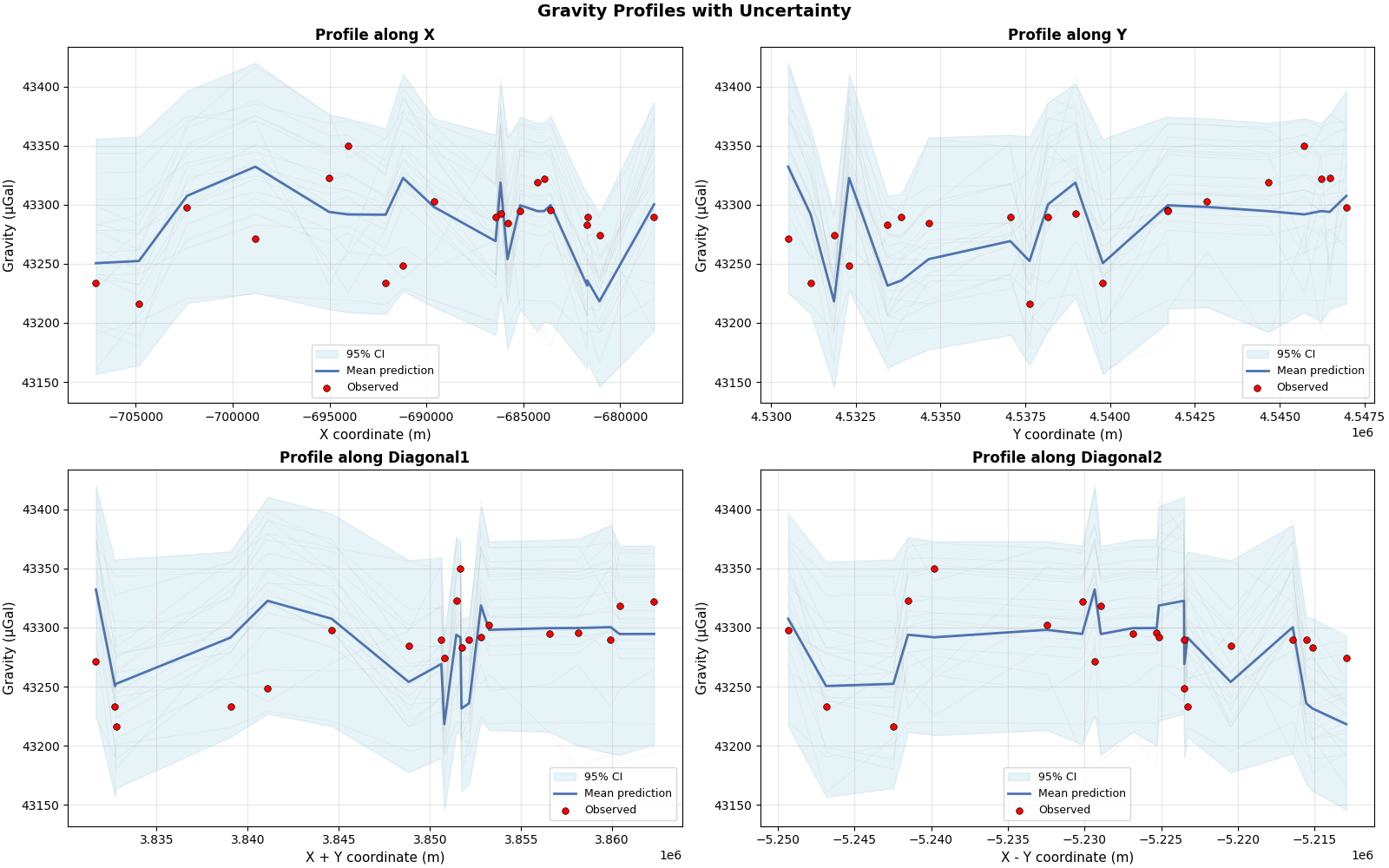

Uncertainty Quantification: Prior

gravity_samples_norm, unit_label = generate_gravity_uncertainty_plots(
    gravity_samples_norm=data.prior[r'$\mu_{magnetics}$'].values[0, :],
    observed_gravity_ugal=observed_magnetics_nt,
    xy_ravel=xy_ravel
)

•
•
•

============================================================
EXTRACTED NORMALIZED SAMPLES
============================================================
Number of samples: 100
Number of devices: 20
Normalization was applied DURING inference (not post-processing)
All samples use consistent normalization parameters from observed data
============================================================


============================================================
UNCERTAINTY SUMMARY STATISTICS
============================================================
Mean gravity:        43282.82 ± 31.28 μGal
Mean uncertainty:    45.28 μGal
Max uncertainty:     49.52 μGal
Min uncertainty:     39.20 μGal
Mean CV:             0.10%
RMSE:                39.22 μGal
Correlation (R):     0.239
============================================================

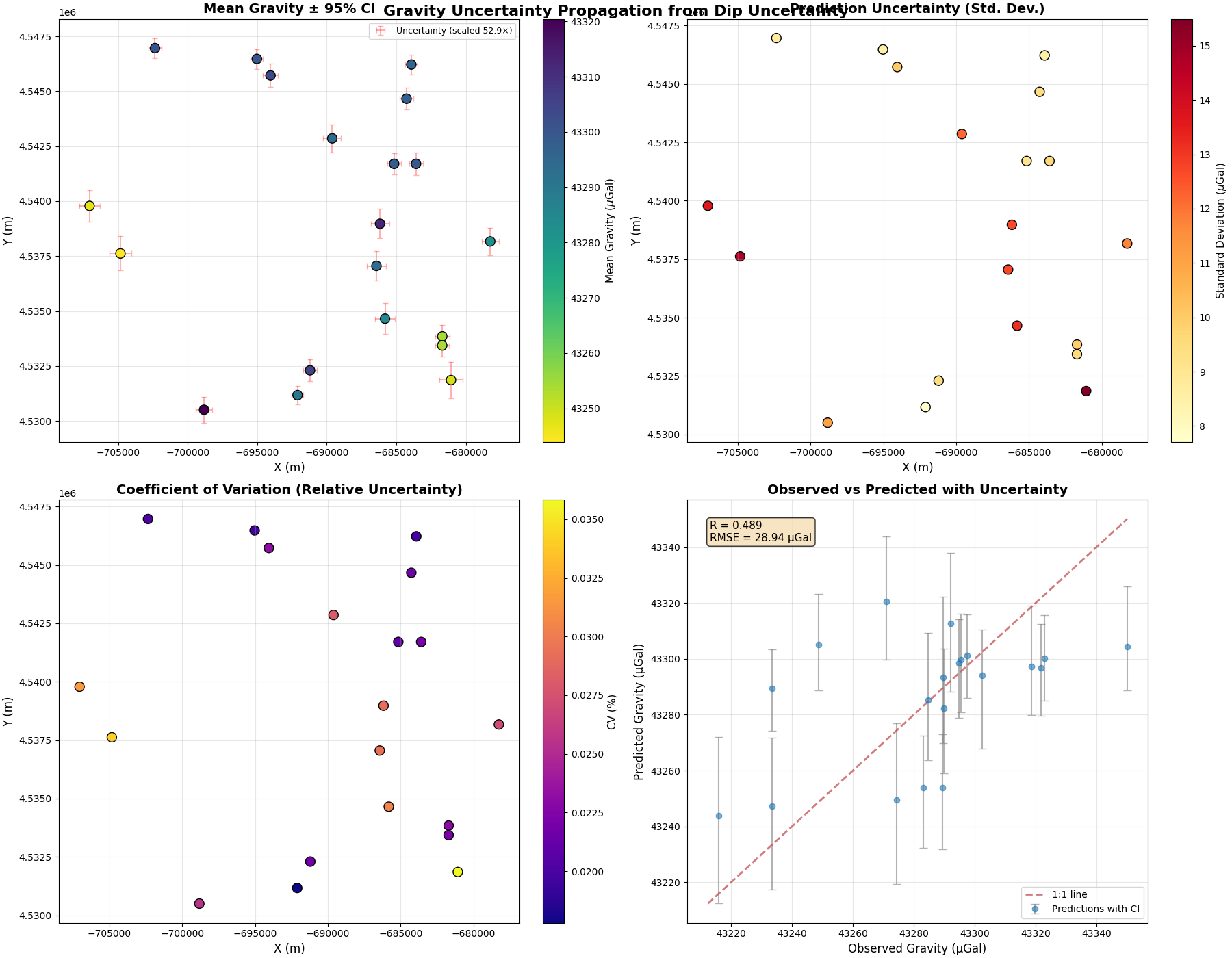

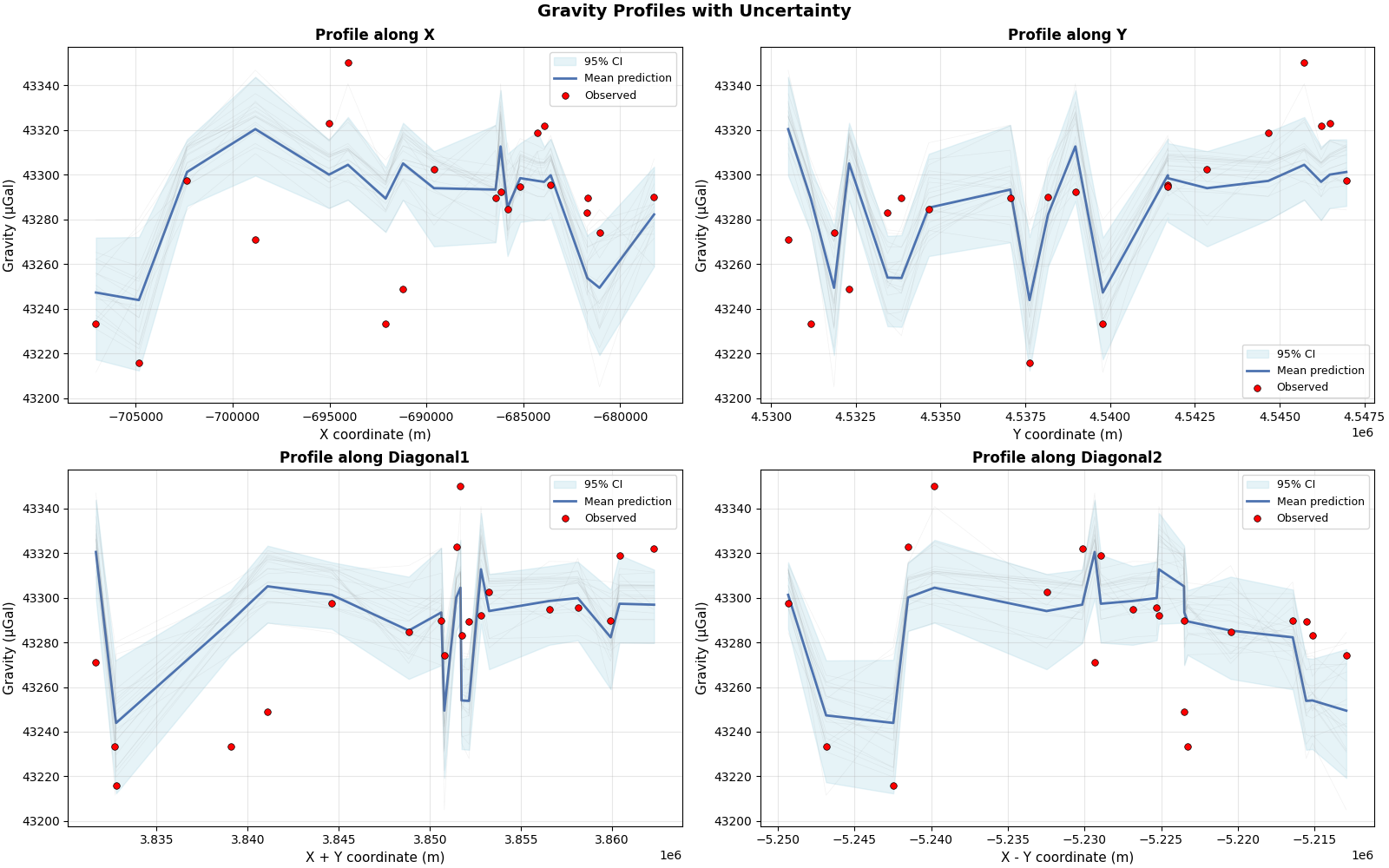

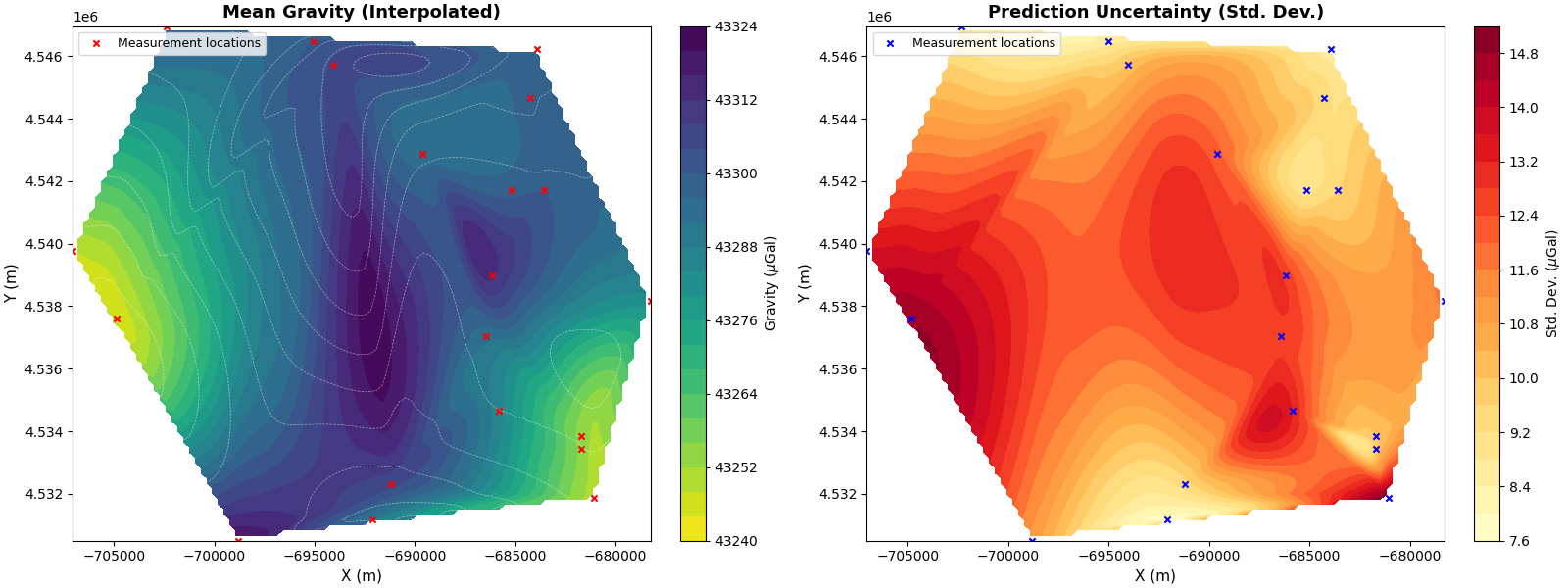

Uncertainty Quantification: Posterior

if hasattr(data, 'posterior_predictive') and r'$\mu_{magnetics}$' in data.posterior_predictive:
    gravity_samples_norm, unit_label = generate_gravity_uncertainty_plots(
        gravity_samples_norm=data.posterior_predictive[r'$\mu_{magnetics}$'].values[0, :],
        observed_gravity_ugal=observed_magnetics_nt,
        xy_ravel=xy_ravel
    )

•
•
•

============================================================
EXTRACTED NORMALIZED SAMPLES
============================================================
Number of samples: 200
Number of devices: 20
Normalization was applied DURING inference (not post-processing)
All samples use consistent normalization parameters from observed data
============================================================


============================================================
UNCERTAINTY SUMMARY STATISTICS
============================================================
Mean gravity:        43286.47 ± 22.85 μGal
Mean uncertainty:    10.89 μGal
Max uncertainty:     15.50 μGal
Min uncertainty:     7.71 μGal
Mean CV:             0.03%
RMSE:                28.94 μGal
Correlation (R):     0.489
============================================================

Sigma Analysis: Outlier Detection

Hierarchical modeling allows us to identify stations with unusually high noise, which may indicate instrument problems, terrain correction errors, or localized geological complexity not captured by the model.

if "sigma_stations" in data.posterior_predictive:
    posterior_sigmas = data.posterior_predictive["sigma_stations"].values
    station_noise_mean = posterior_sigmas.mean(axis=(0, 1))
    sigma_global_mean = station_noise_mean.mean()

    # Identify stations with noise > 2 standard deviations above mean
    problematic = np.where(station_noise_mean > 2 * sigma_global_mean)[0]
    print(f"\nPotential outlier stations identified: {problematic}")

    # Plot sigma distribution

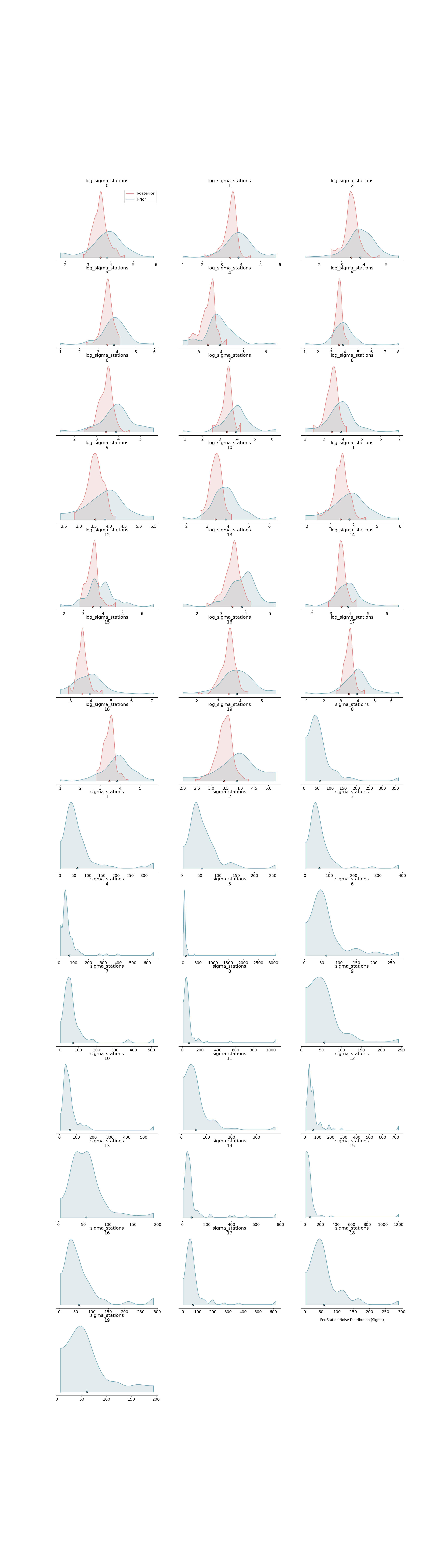

    az.plot_density(
        data=[data, data.prior],
        var_names=["sigma_stations"],
        filter_vars="like",
        hdi_prob=0.9999,
        shade=.2,
        data_labels=["Posterior", "Prior"],
        colors=[default_red, default_blue],
    )
    plt.title("Per-Station Noise Distribution (Sigma)")
    plt.show()

Potential outlier stations identified: []

Probability Density Fields and Information Entropy

To visualize the spatial uncertainty of the geological structure, we compute probability density fields and information entropy.

# Resetting the model
geo_model = gp.create_geomodel(
    project_name='gravity_inversion',
    extent=extent,
    refinement=refinement,
    resolution=resolution,
    importer_helper=gp.data.ImporterHelper(
        path_to_orientations=mod_or_path,
        path_to_surface_points=mod_pts_path,
    )
)
# Prior Probability Fields
print("\nComputing prior probability fields...")
topography_path = paths.get_topography_path()
probability_fields_for(
    geo_model=geo_model,
    inference_data=data.prior,
    topography_path=topography_path
)

# Posterior Probability Fields
if hasattr(data, 'posterior'):
    print("\nComputing posterior probability fields...")
    probability_fields_for(
        geo_model=geo_model,
        inference_data=data.posterior,
        topography_path=topography_path
    )

•
•
•
•
•
•

•
•

Computing prior probability fields...
Active grids: GridTypes.DENSE|NONE
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Active grids: GridTypes.DENSE|TOPOGRAPHY|NONE
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
/home/leguark/PycharmProjects/gempy_viewer/gempy_viewer/modules/plot_3d/drawer_surfaces_3d.py:38: PyVistaDeprecationWarning:
../../../gempy_viewer/gempy_viewer/modules/plot_3d/drawer_surfaces_3d.py:38: Argument 'color' must be passed as a keyword argument to function 'BasePlotter.add_mesh'.
From version 0.50, passing this as a positional argument will result in a TypeError.
  gempy_vista.surface_actors[element.name] = gempy_vista.p.add_mesh(

Computing posterior probability fields...
Active grids: GridTypes.DENSE|NONE
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
Active grids: GridTypes.DENSE|TOPOGRAPHY|NONE
Setting Backend To: AvailableBackends.PYTORCH
Using sequential processing for 1 surfaces
/home/leguark/PycharmProjects/gempy_viewer/gempy_viewer/modules/plot_3d/drawer_surfaces_3d.py:38: PyVistaDeprecationWarning:
../../../gempy_viewer/gempy_viewer/modules/plot_3d/drawer_surfaces_3d.py:38: Argument 'color' must be passed as a keyword argument to function 'BasePlotter.add_mesh'.
From version 0.50, passing this as a positional argument will result in a TypeError.
  gempy_vista.surface_actors[element.name] = gempy_vista.p.add_mesh(

3D Entropy Visualization

We can also visualize uncertainty in 3D by injecting the entropy field back into the GemPy solutions object. Note: The 3D visualization is already handled inside probability_fields_for() by injecting the entropy field and calling gpv.plot_3d.

Summary

Key Takeaways

1. Same Framework, Different Physics: The Bayesian workflow for magnetic inversion is identical to gravity (see example 04), but we model susceptibility instead of density.

2. TMI is Orientation-Dependent: Magnetic anomalies depend on Earth’s field direction (inclination, declination), making interpretation more complex than gravity.

3. Hierarchical Noise Modeling: Per-station noise inference automatically handles outliers and varying data quality.

4. Joint Interpretation: For best results, consider joint gravity-magnetic inversion to simultaneously constrain both density and susceptibility.

For detailed explanations of: - Bayesian theory and MCMC - Hierarchical modeling - Prior predictive checks - Posterior diagnostics

Please refer to sphx_glr_02_probabilistic_modeling_04_gravity_inversion.py

# sphinx_gallery_thumbnail_number = 24
